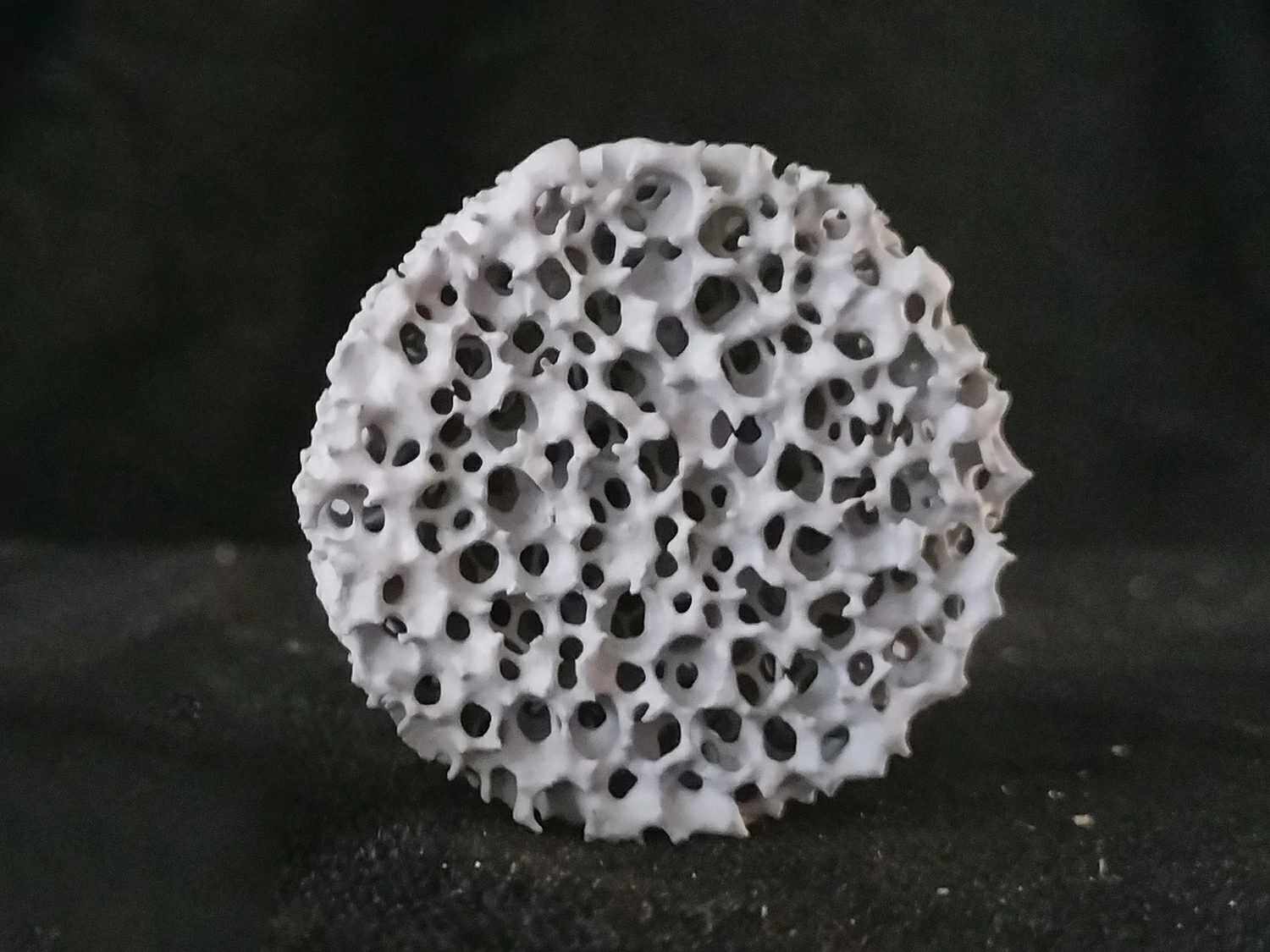

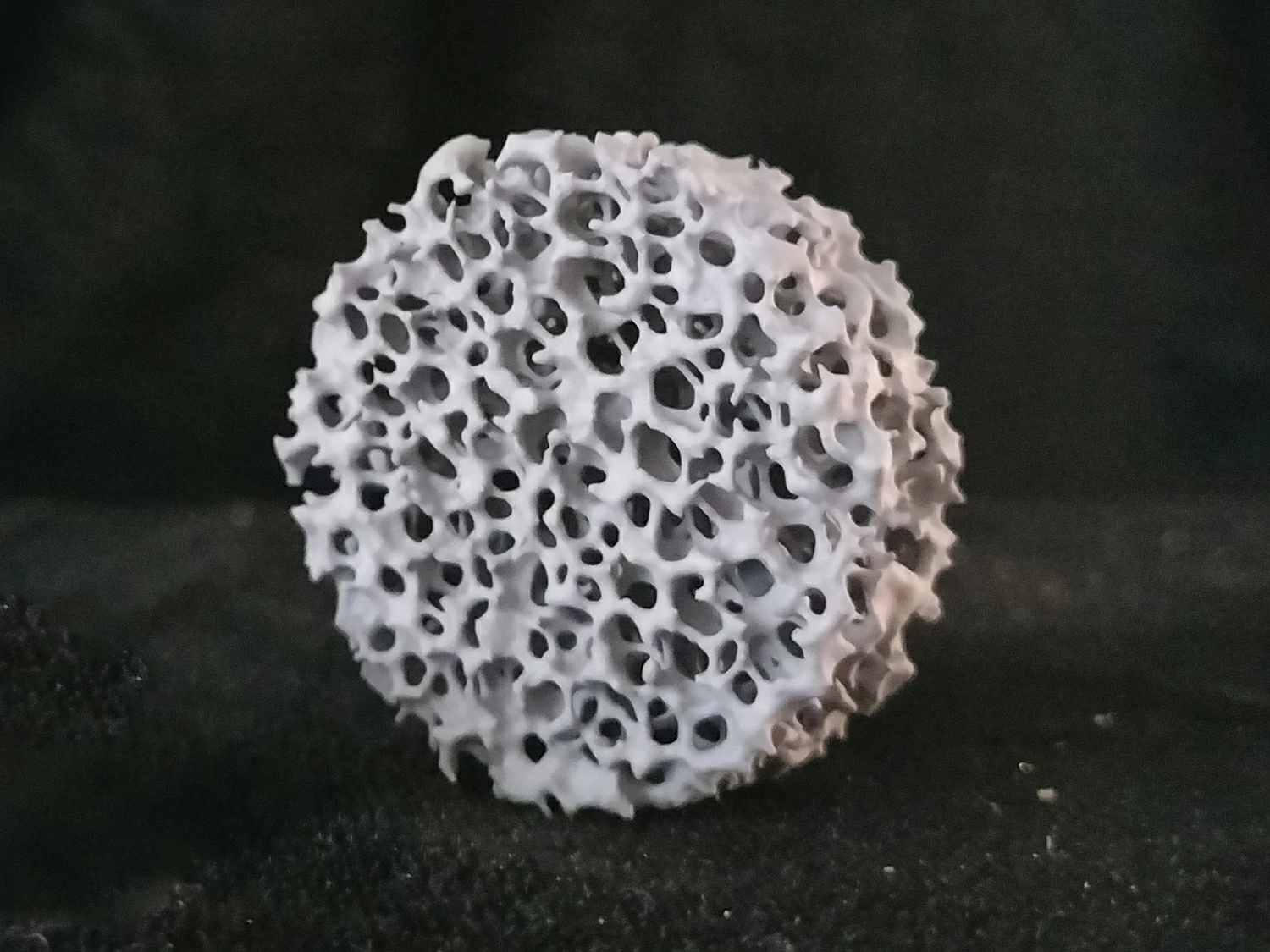

Dia 40*15 30P Round SIC Ceramic Foam Filter

Foundrymax – Round Ø40×15mm / 30PPI Silicon Carbide Ceramic Foam Filter

• Material: Silicon Carbide (SiC) | Max Temp: 1500°C

• Pore Density: 30 PPI

• Dimensions: 40 mm diameter × 15 mm thickness

• Structure: Open‑cell reticulated foam

• Function: Removes inclusions, oxides, and slag from molten metal

• Foundrymax Advantage: In‑house production, factory pricing

Foundrymax Round Ø40×15mm / 30PPI Silicon Carbide SIC Ceramic Foam Filter

Foundrymax offers the Ø40×15mm silicon carbide ceramic foam filter with 30 PPI pore density. This round filter is designed for foundries processing cast iron, ductile iron, aluminium, and copper alloys.

Silicon carbide (SiC) is rated to 1500°C. It provides thermal shock resistance and chemical stability in contact with molten metal.

The filter measures 40mm in diameter with a 15mm thickness. The 30 PPI fine‑pore structure captures smaller inclusions and oxides while maintaining good flow characteristics. The open‑cell reticulated structure traps slag and refractory particles through mechanical sieving and adhesion.

Why Foundrymax?

As a direct manufacturer, we produce this size with consistent quality. Custom thicknesses and PPI grades available upon request.

Contact Foundrymax to discuss your requirements or request a sample.
