40×40×11 20PPI SIC Silicon Carbide Ceramic Foam Filter

Foundrymax – Square 40×40×11mm / 20PPI Silicon Carbide Ceramic Foam Filter

• Material: Silicon Carbide (SiC) | Max Temp: 1500°C

• Pore Density: 20 PPI

• Dimensions: 40 mm × 40 mm × 11 mm

• Structure: Open‑cell reticulated foam

• Function: Removes inclusions, oxides, and slag from molten metal

• Foundrymax Advantage: In‑house production, factory pricing

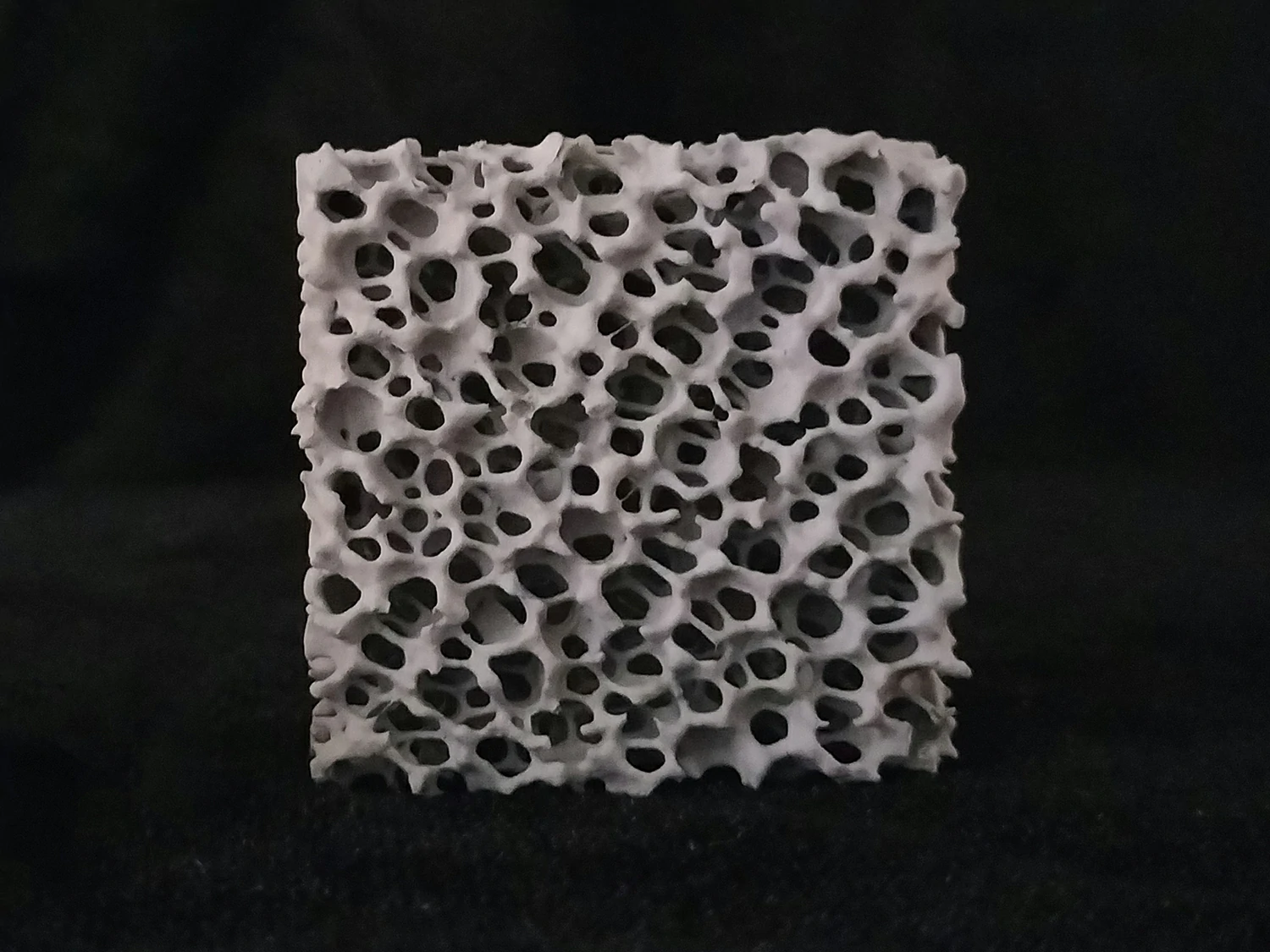

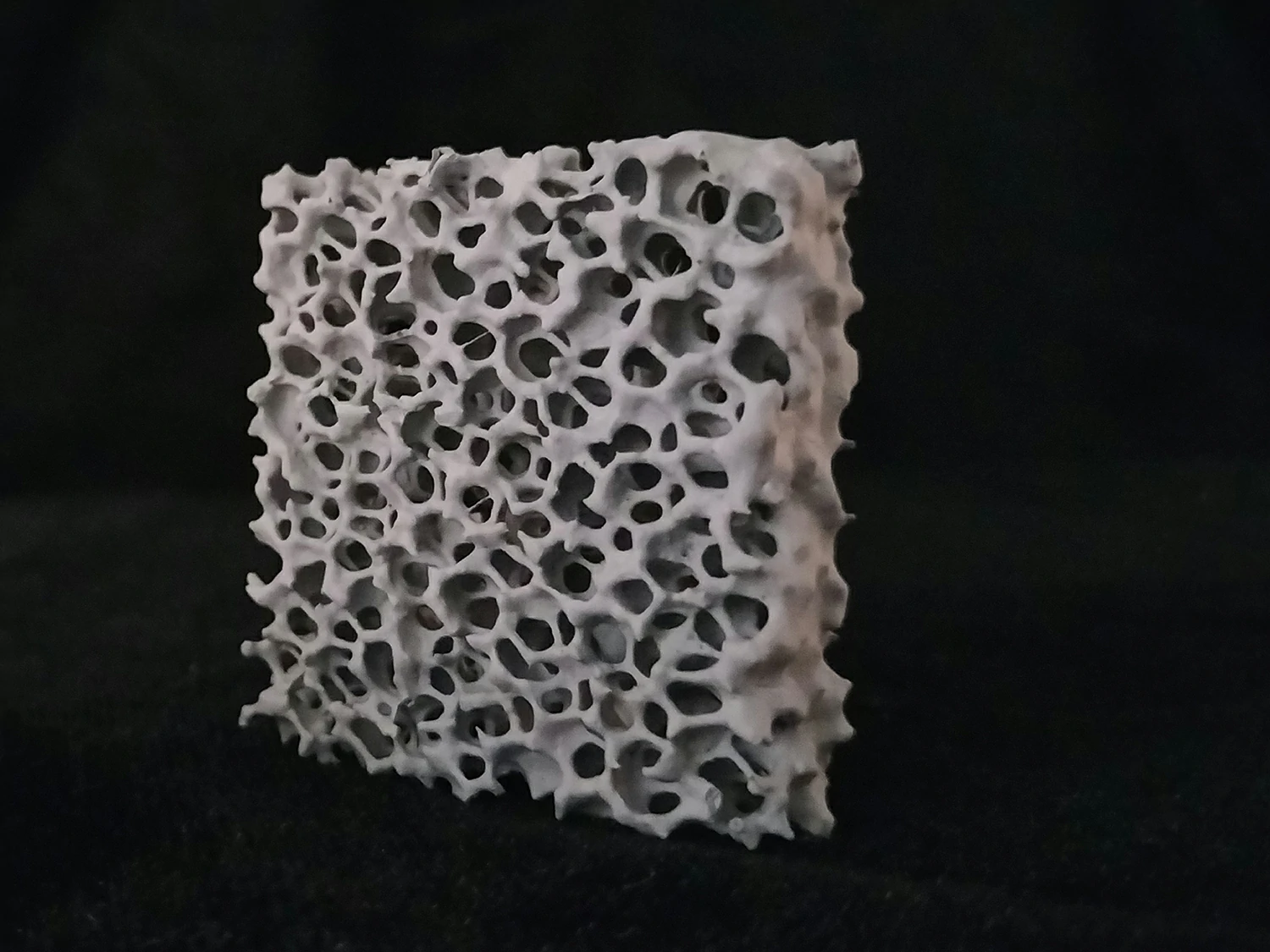

Foundrymax 40×40×11mm / 20PPI Silicon Carbide Ceramic Foam Filter

Foundrymax offers the 40×40×11mm silicon carbide ceramic foam filter with 20 PPI pore density. This square filter is designed for foundries processing cast iron, ductile iron, aluminium, and copper alloys.

Material

Silicon carbide (SiC) is rated to 1500°C. It provides thermal shock resistance and chemical stability in contact with molten metal.

Dimensions

The filter measures 40mm × 40mm with an 11mm thickness.

Filtration Performance

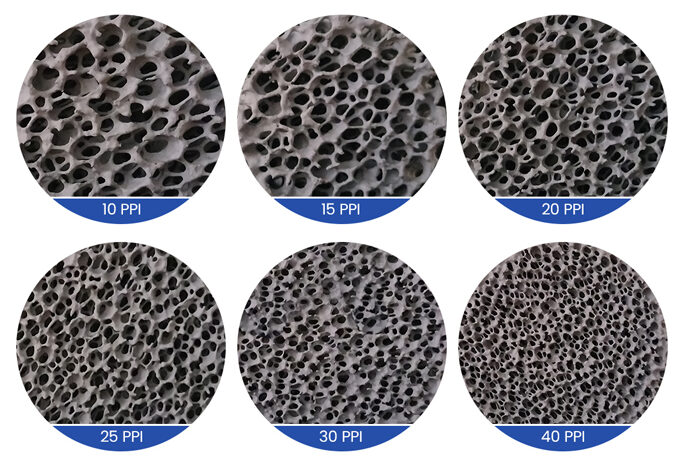

The 20 PPI pore structure (~1.2–1.5 mm) captures inclusions and oxides while maintaining good flow characteristics. The open‑cell reticulated structure (porosity 80–90%) traps slag and refractory particles through mechanical sieving and adhesion.

Why Foundrymax?

As a direct manufacturer, we produce this size with consistent quality. Custom thicknesses and PPI grades available upon request.

Contact Foundrymax to discuss your requirements or request a sample.
