120*22 30PPI Al2O3 Alumina Ceramic Foam Filter

Foundrymax – Round Ø120×22mm / 30PPI Alumina Ceramic Foam Filter

• Material: Alumina (Al₂O₃) | Max Temp: 1200°C

• Pore Density: 30 PPI

• Dimensions: 120 mm diameter × 22 mm thickness

• Structure: Open‑cell reticulated foam

• Function: Removes inclusions, oxides, and slag from molten aluminium and non-ferrous alloys

• Foundrymax Advantage: In‑house production, factory pricing

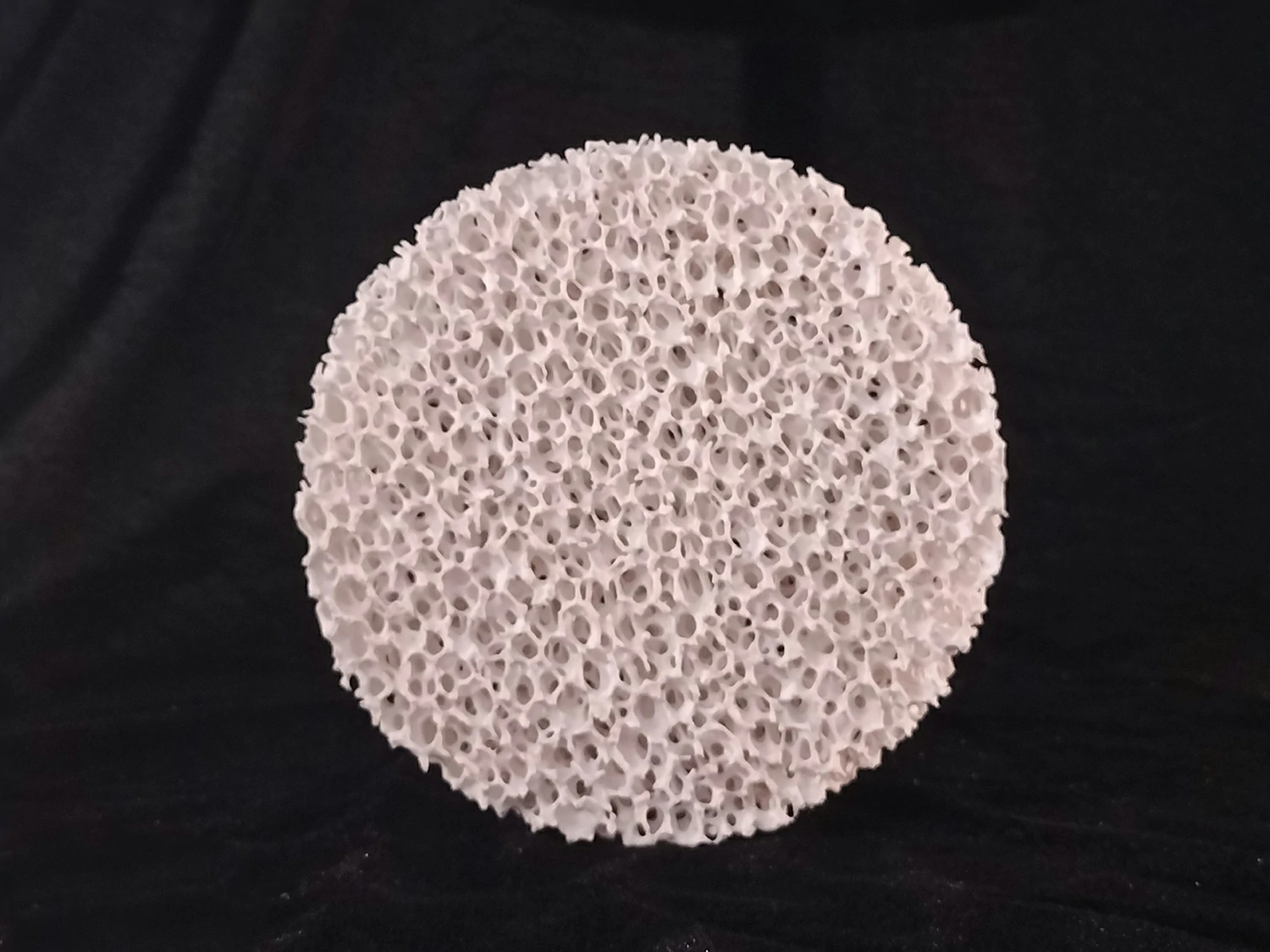

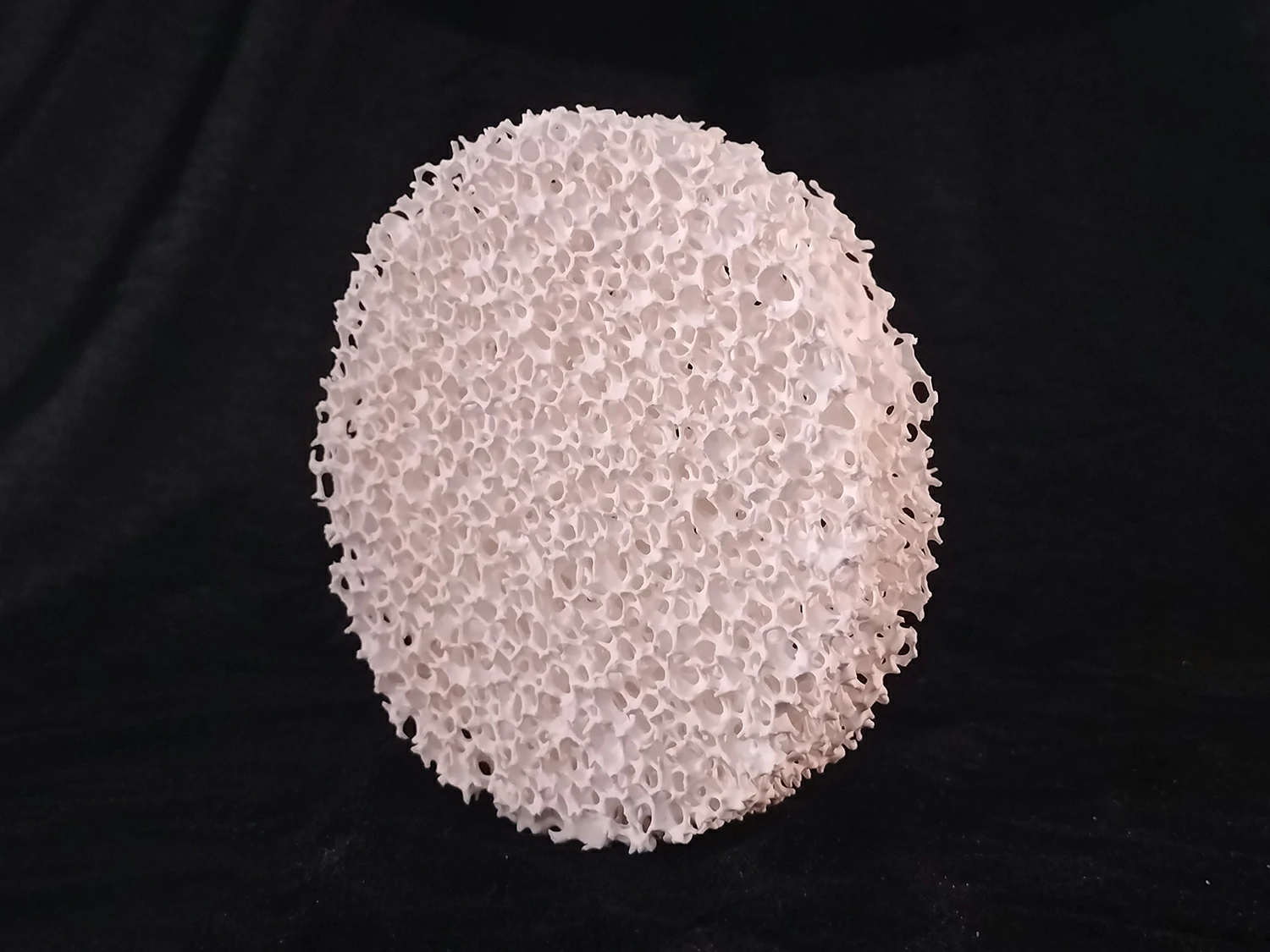

Foundrymax Round Ø120×22mm / 30PPI Alumina Ceramic Foam Filter

Foundrymax offers the Ø120×22mm alumina ceramic foam filter with 30 PPI pore density. This round filter is designed for foundries processing aluminium and other non-ferrous alloys.

Alumina (Al₂O₃) is rated to 1200°C. It is chemically stable in contact with molten aluminium and non-ferrous melts, and provides reliable performance at a cost-effective price point.

The filter measures 120mm in diameter with a 22mm thickness. The 30 PPI fine-pore structure captures smaller inclusions and oxides while maintaining good flow characteristics. The open-cell reticulated structure traps oxides and refractory particles through mechanical sieving and adhesion.

Why Foundrymax?

As a direct manufacturer, we produce this size with consistent quality. Custom thicknesses and 10-40 PPI grades available upon request.

Contact Foundrymax to discuss your requirements or request a sample.
